SAFETY INVESTIGATION REPORT MH370 (9M-MRO)
1.18.1 Provision of Air Traffic Services and Areas of Responsibilities
10) Flight Progress Strip
The FPS (Figure 1.18D below) of MH370 on 07 March 2014 . contains essential flight and control data and is the basic tool to enable Air Traffic Controllers to visualise the disposition of traffic within their area of responsibility including traffic arriving and departing an aerodrome, assess conflicts and control aircraft in a safe manner.

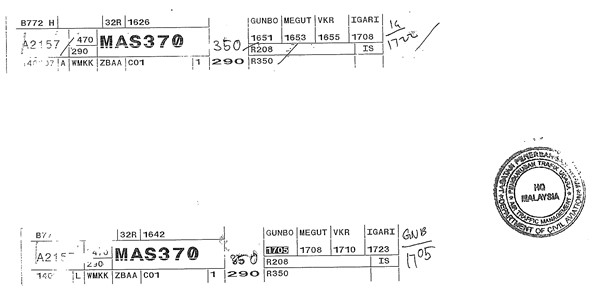

Figure 1.18D - Flight Progress Strip of MH370 on 07 March 2014
Source:
Safety Investigation Report MH370/01/2018
